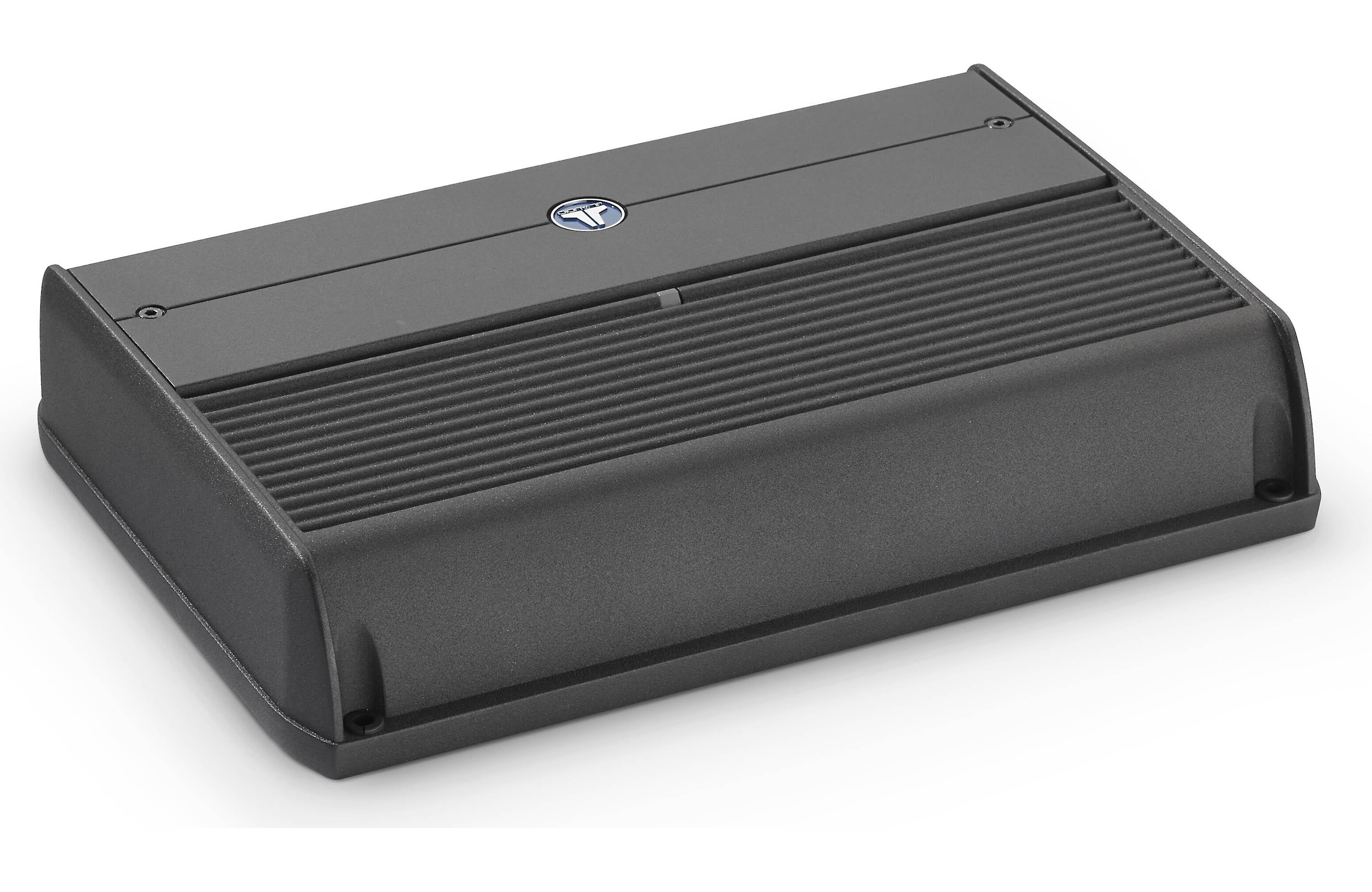

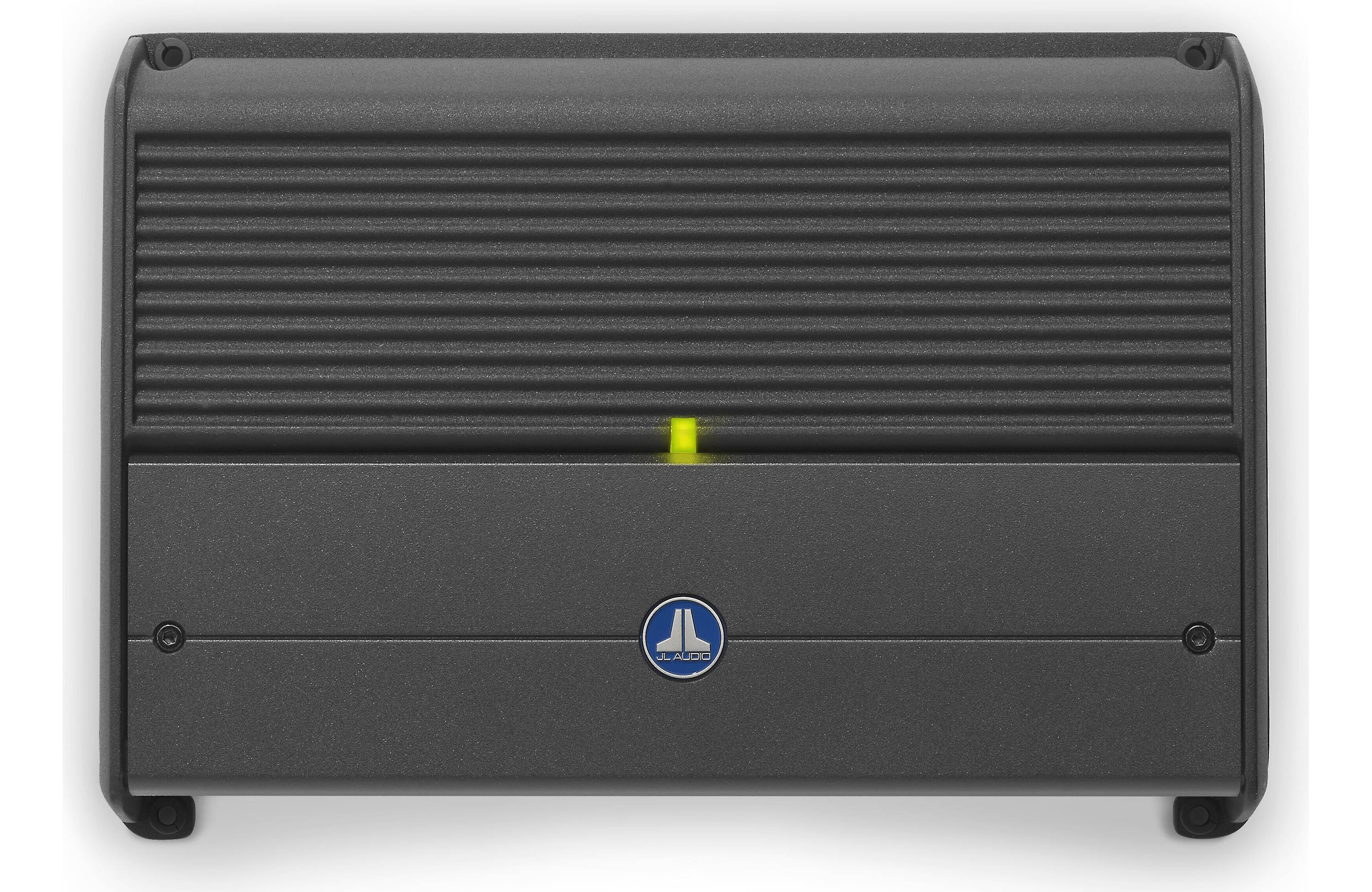

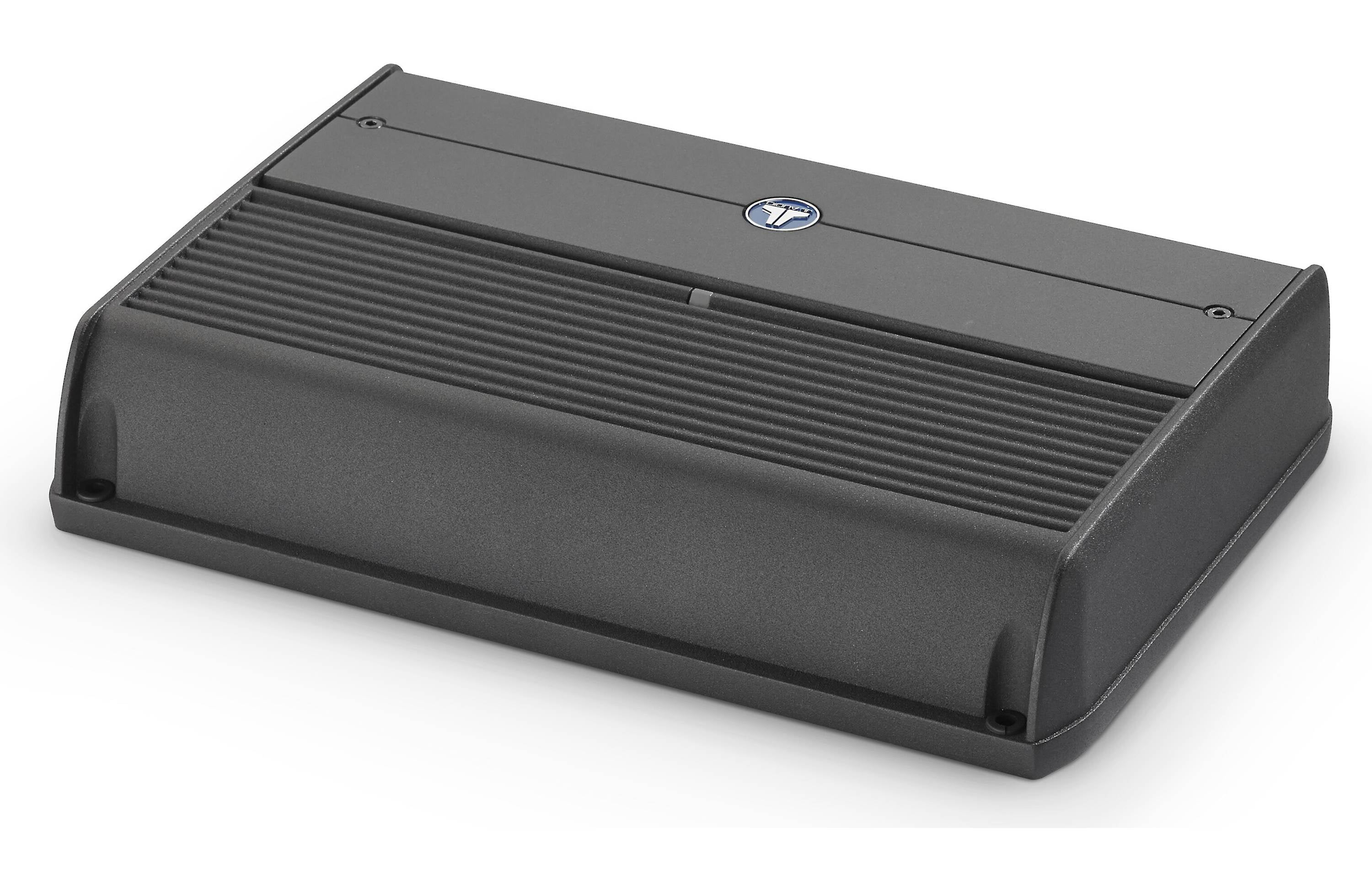

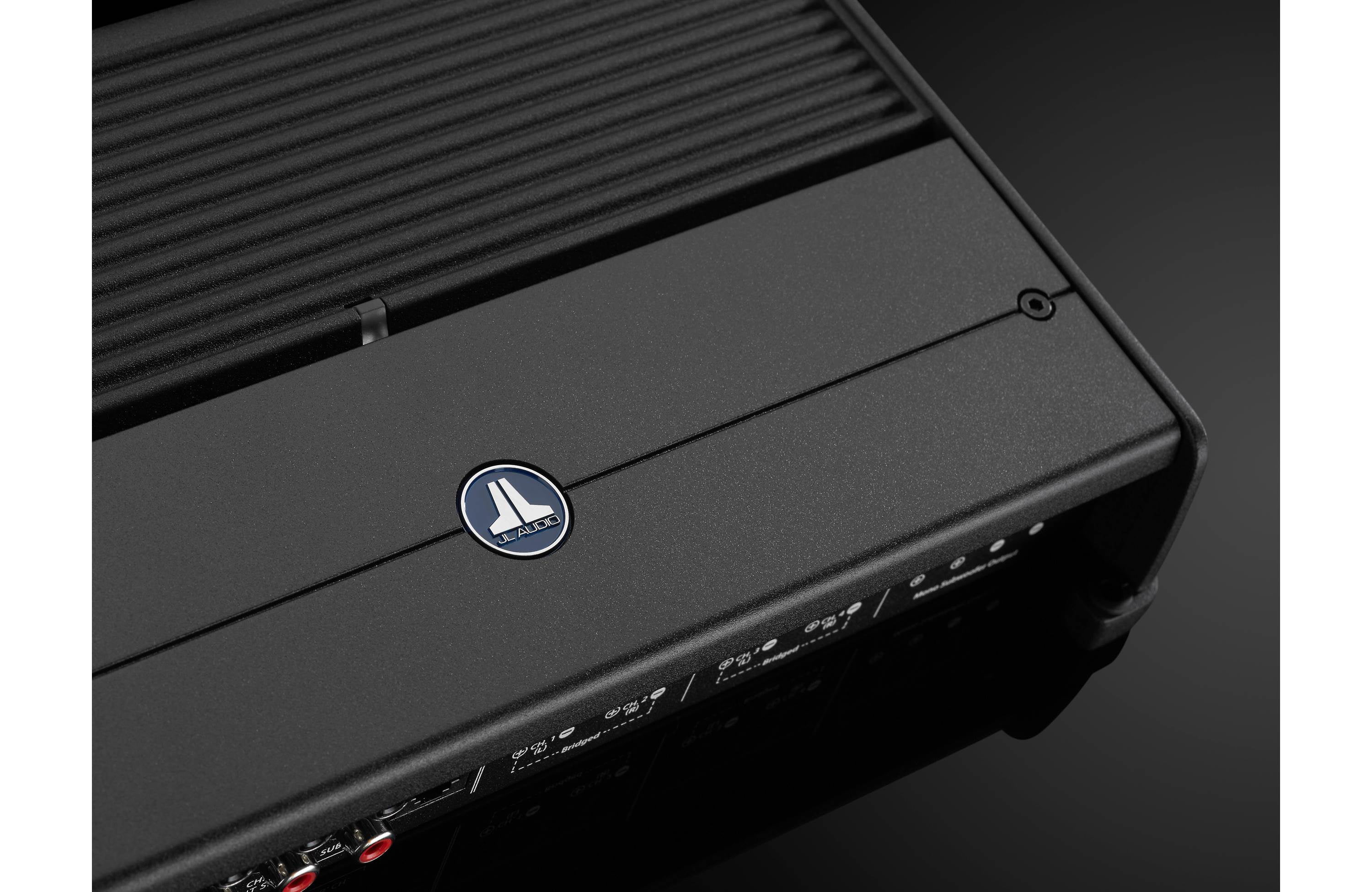

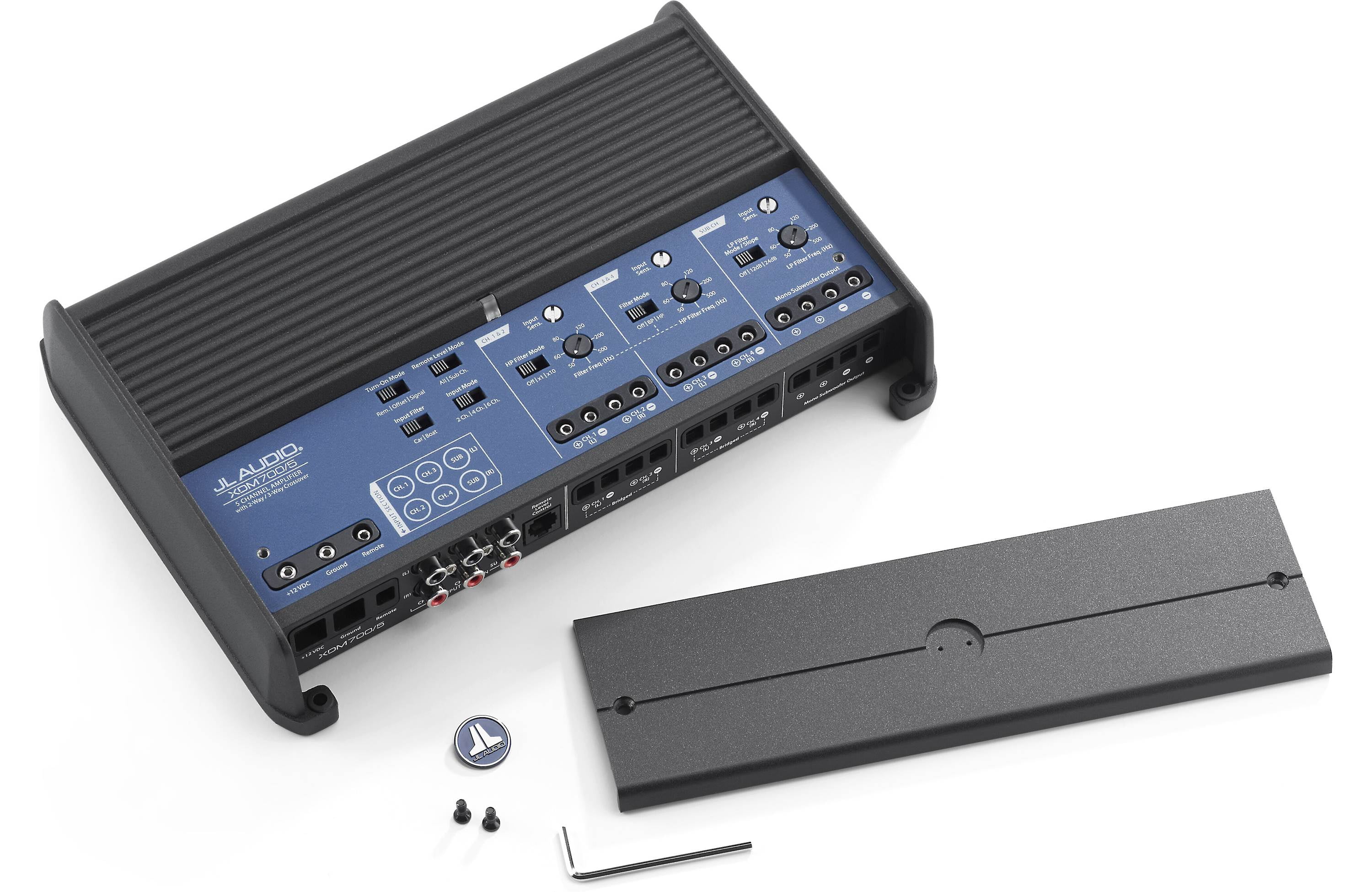

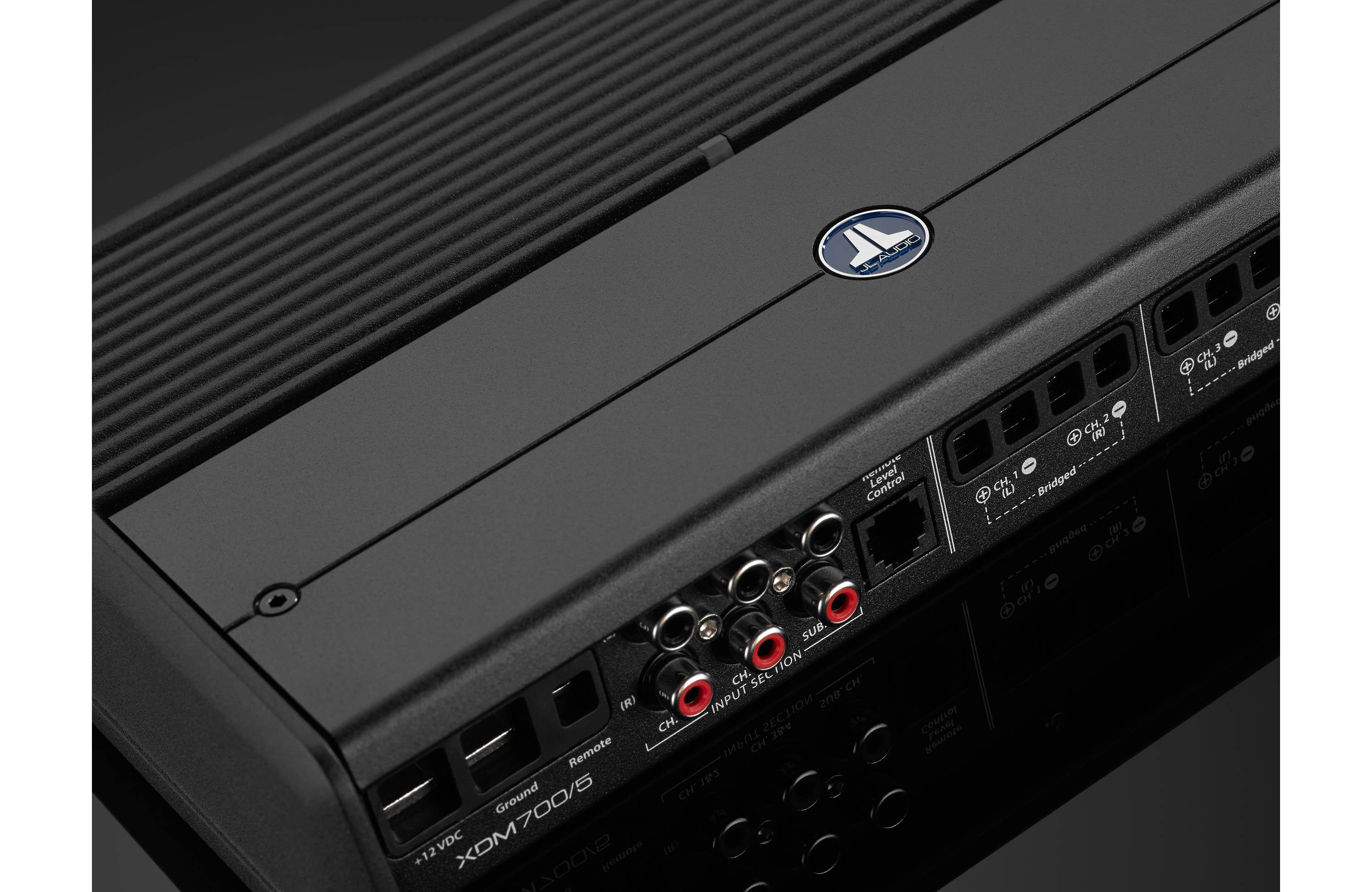

JL Audio XDM700/5 5 Channel 700W Class D System Car / Marine Amplifier

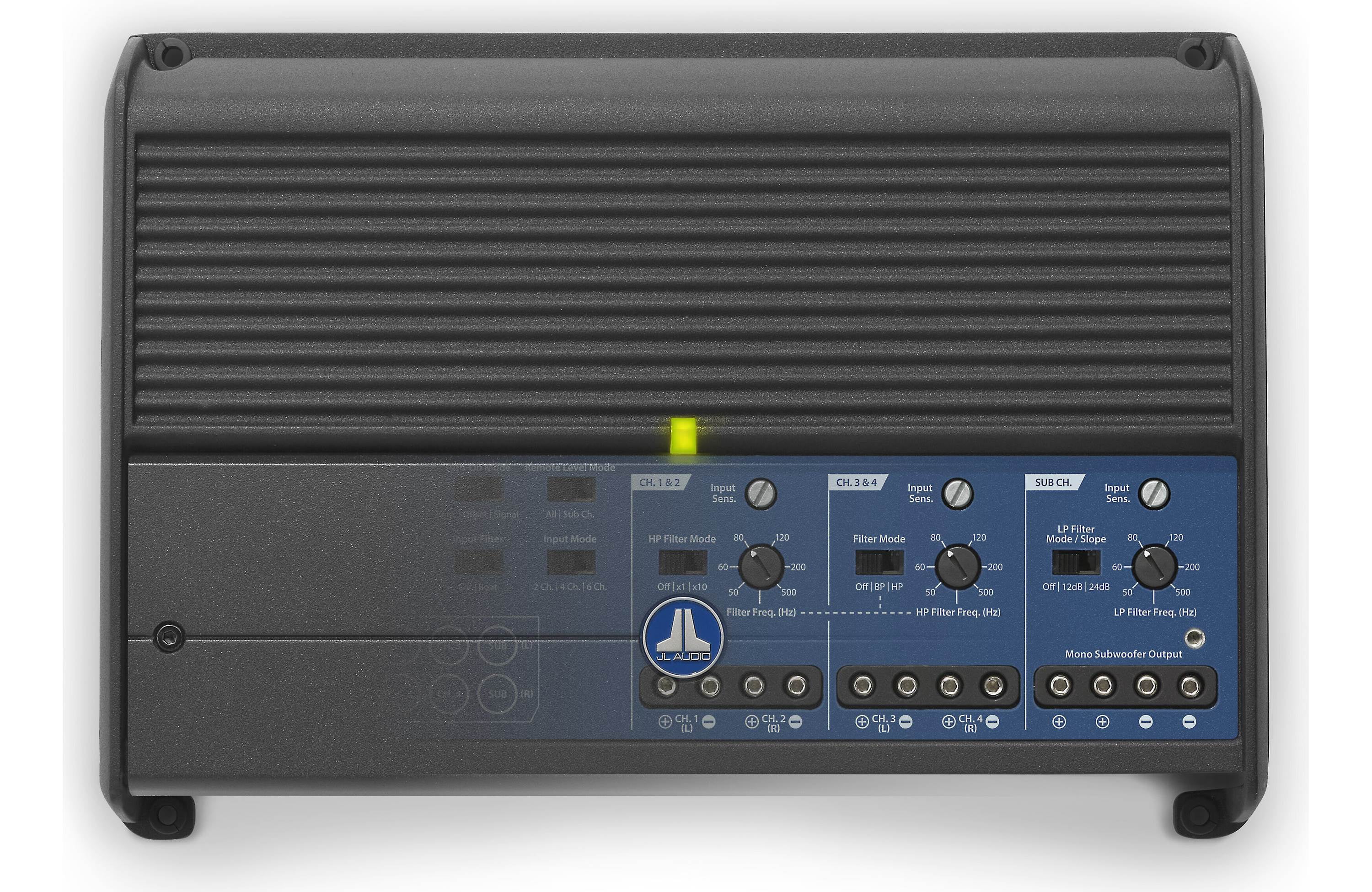

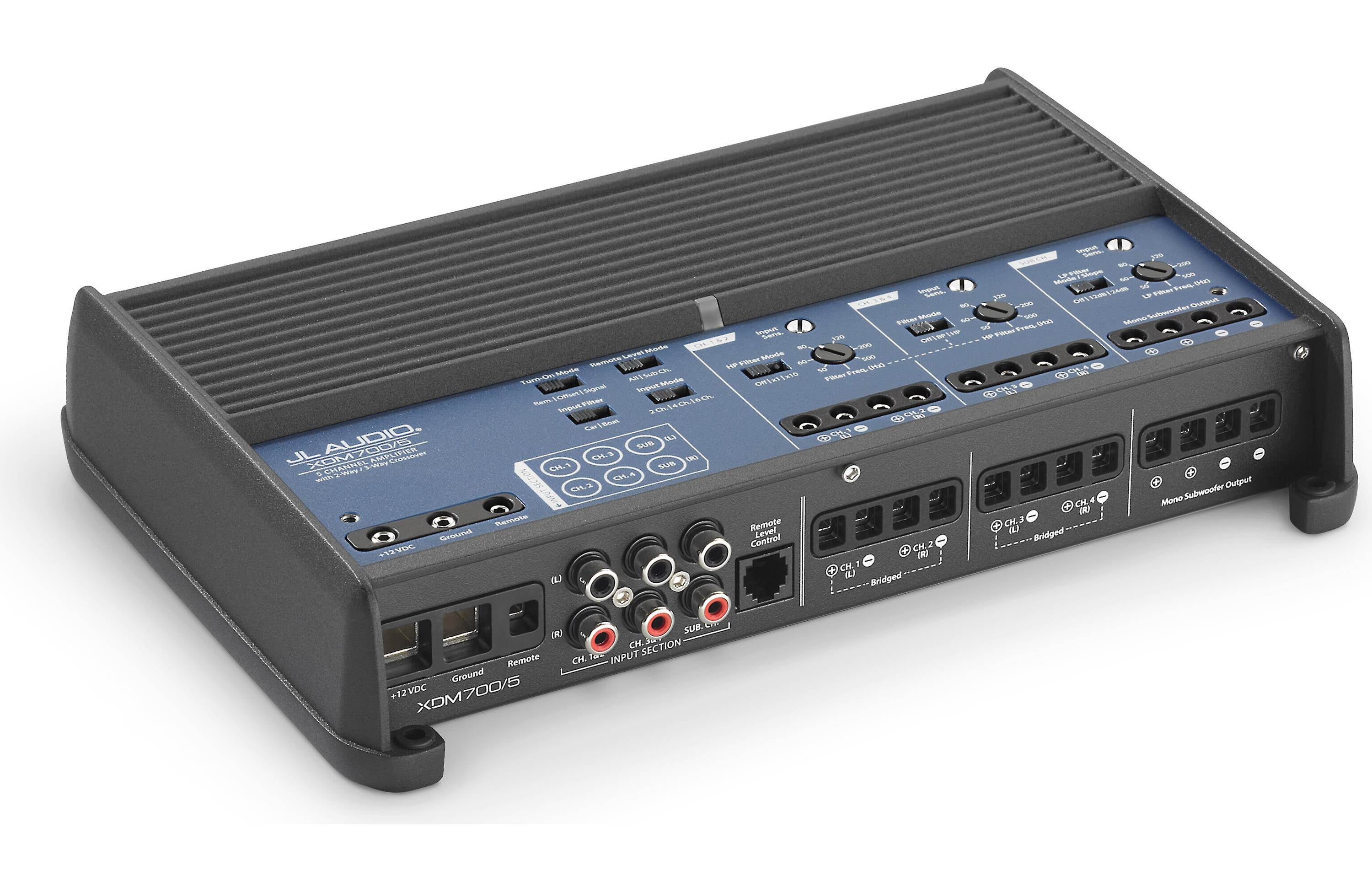

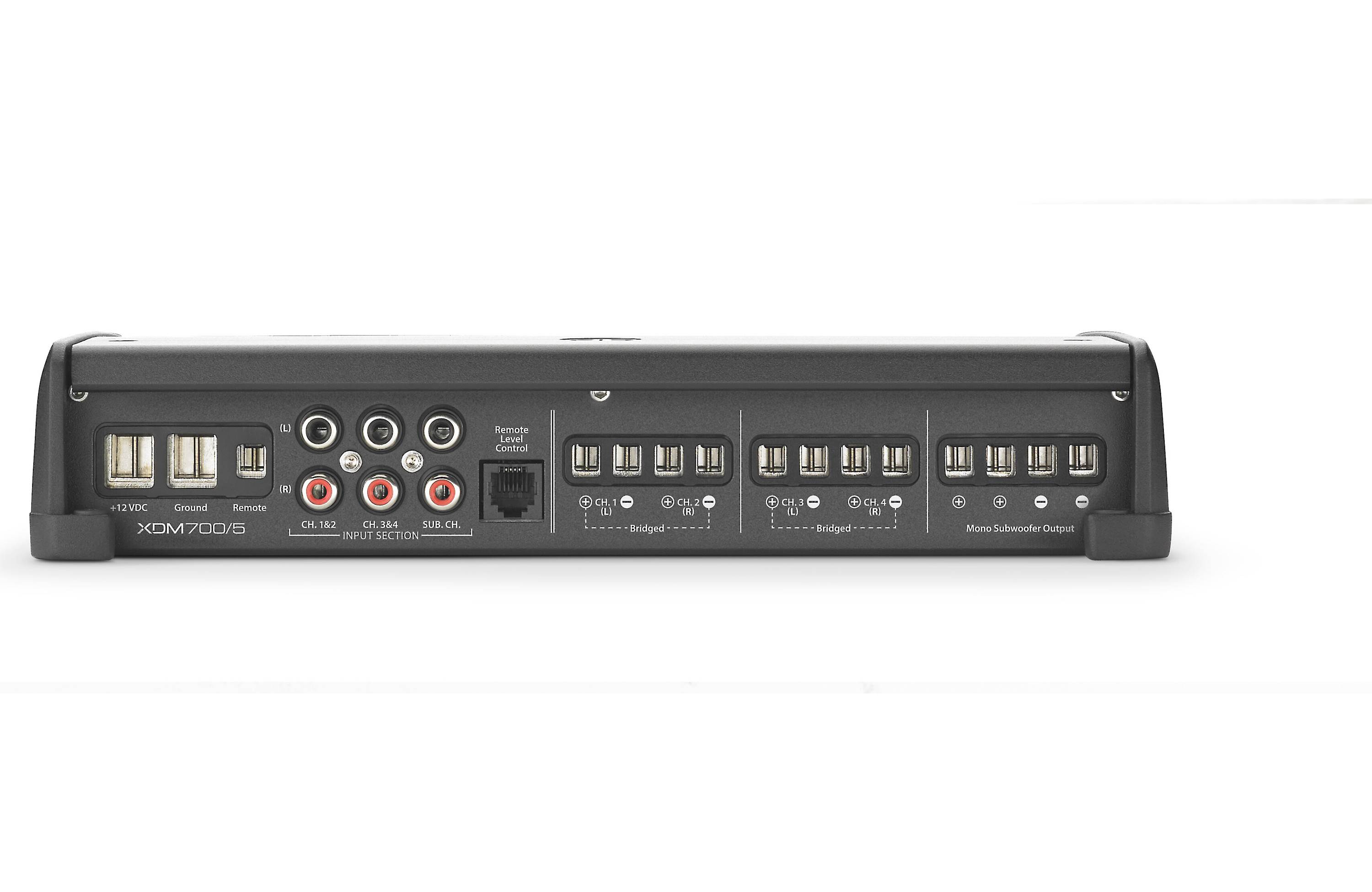

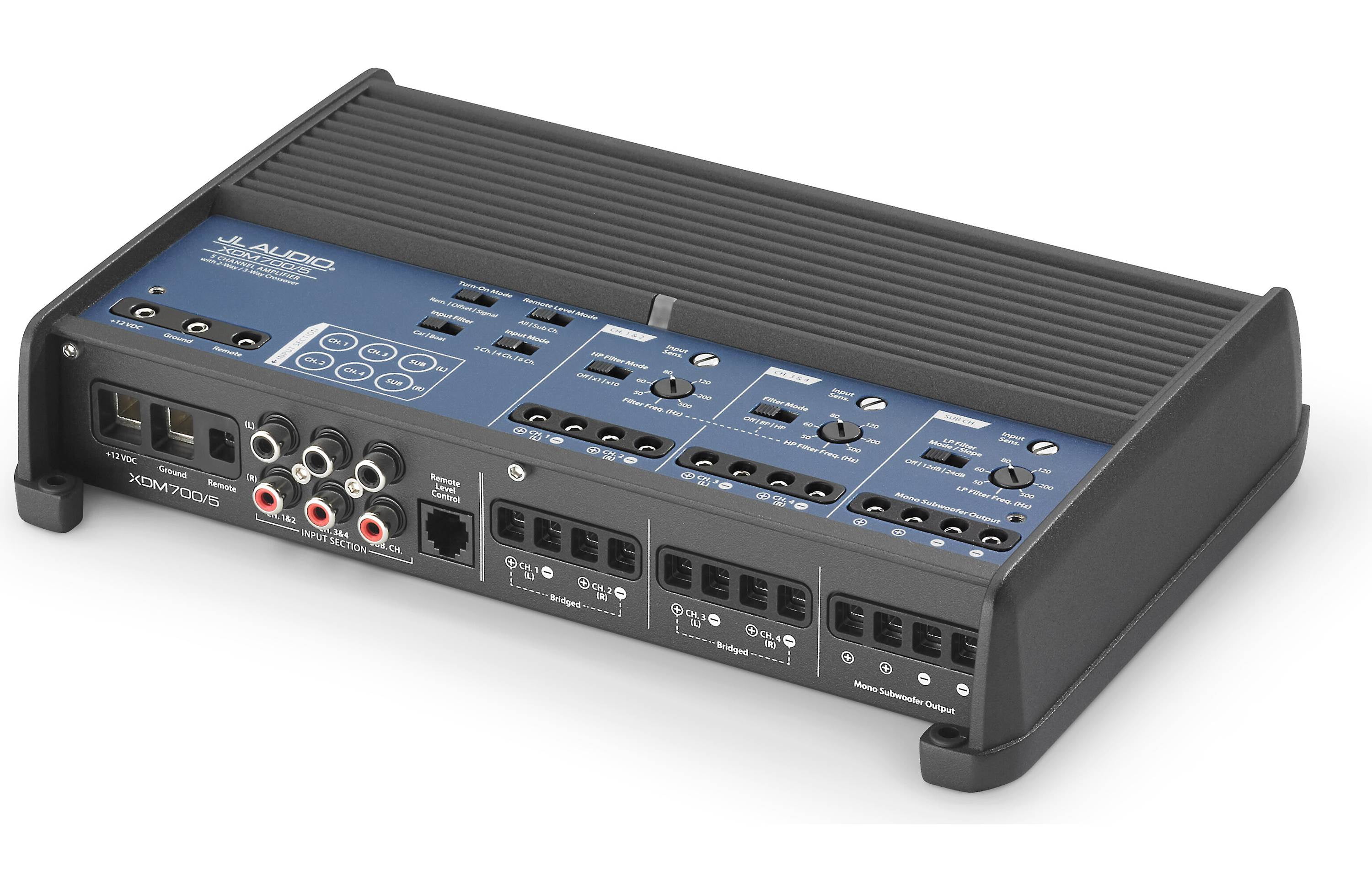

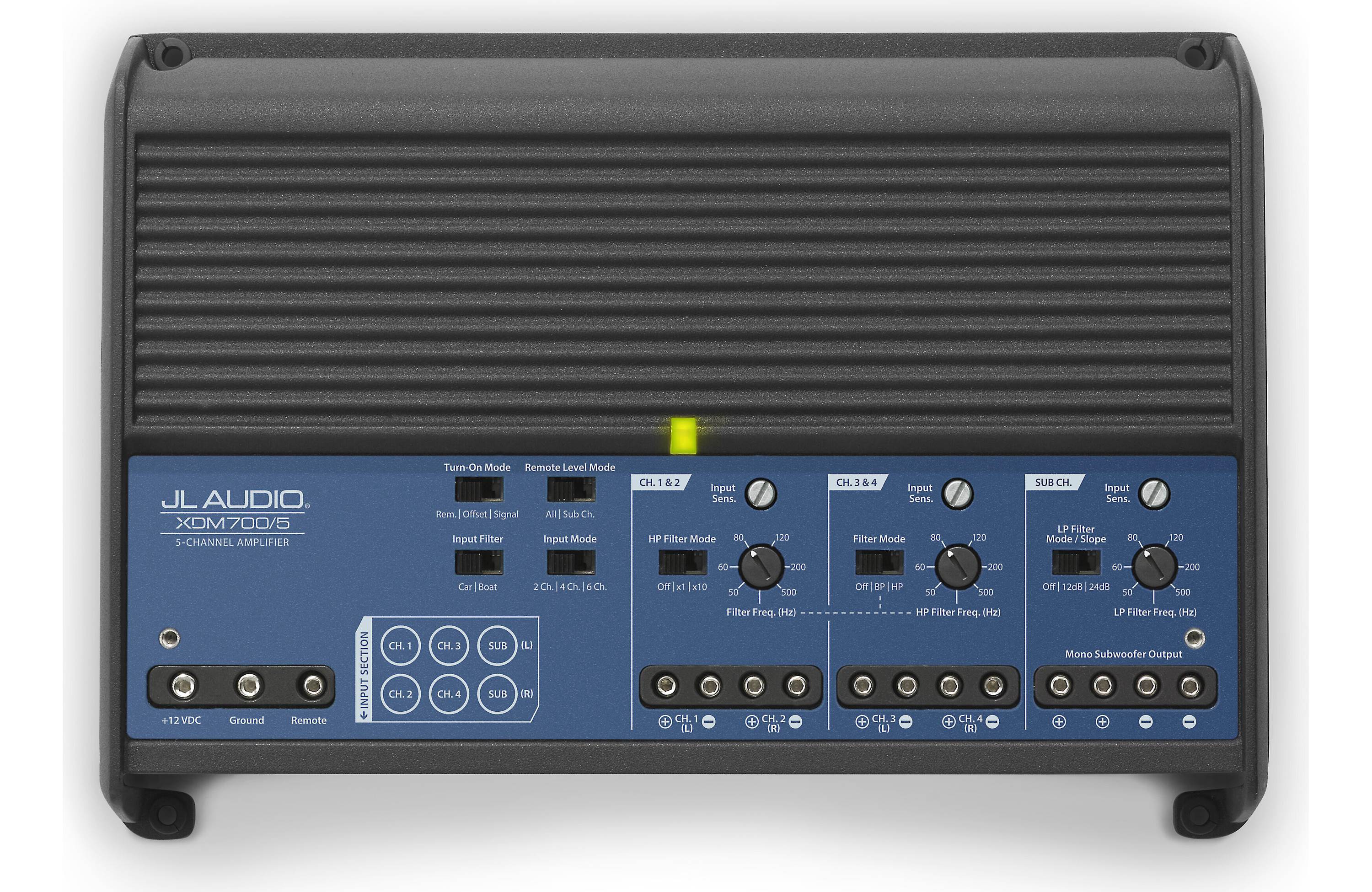

<p>5-Channel Class D Car/Marine System Amplifier, 75 W x 4 @ 4 Ω + 300 W x 1 @ 2 Ω - 14.4V The XDM700/5 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and fits comfortably in just about any vehicle or vessel. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ω), while also generating a solid 300 W of power for a subwoofer system. The technology that makes this much power possible in such a small chassis is our high-speed NexD™ switching amplifier design. Suitable for car or boat installations, the XDM700/5 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades. The XDM700/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 &amp; 4, and a high-pass filter on Ch. 1 &amp; 2. An "x10" multiplier switch on the Ch. 1 &amp; 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm. Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.</p>

• The JL Audio XDM700/5 is a high-performance, five-channel car amplifier known for delivering powerful and clean audio output. Here are the key features of this amplifier:


  Power Output:

  75 watts RMS x 4 channels at 4 ohms + 180 watts RMS x 1 channel at 4 ohms (subwoofer channel)
  100 watts RMS x 4 channels at 2 ohms + 300 watts RMS x 1 channel at 2 ohms
  200 watts RMS x 2 bridged at 4 ohms + 300 watts RMS at 2 ohms (subwoofer channel)


  Class D Amplification:


  Efficient Class D design allows for high power output with minimal heat generation, improving power efficiency.

• Advanced Thermal Management:
  Built with efficient cooling technology to prevent overheating, ensuring consistent performance.
  Differential-Balanced Inputs:
  Helps to eliminate noise and ground loop issues, ensuring cleaner sound quality by rejecting common noise signals.
  Variable Crossovers:
  Front, rear, and subwoofer channels have variable high-pass and low-pass crossovers (50Hz - 500Hz) for fine-tuning the audio output to match your speakers and subwoofer.

• Bass Boost Control:
  The subwoofer channel features a variable bass boost (0-12 dB at 45 Hz), allowing you to enhance the bass response.
  Remote Level Control (optional):
  You can add an optional remote level control (RBC-1) for subwoofer level adjustment from the driver's seat.
  Compact Size:
  Designed to fit in a variety of vehicle installations due to its compact form factor.

• Signal-Sensing Turn-On:
  Allows the amp to turn on automatically when it detects an incoming signal, making it easier to integrate with factory audio systems.
  Heavy-Duty Construction:
  Built with high-quality materials, ensuring durability and long-lasting performance.
