NVX VAD11005 + High Quality NVX Amp Kit 2200 Peak (1100W RMS) Full Range Class D 5-Channel Car/Marine/Powersports Amplifier with Bass Remote
4.9 (119 items)
Limited Time SaleUS$248.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 238016177 | Release Date | 2026/07/11 | List Price | US$165.99 | Model Number | 238016177 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
NVX VAD11005 + High Quality NVX Amp Kit 2200 Peak (1100W RMS) Full Range Class D 5-Channel Car/Marine/Powersports Amplifier with Bass Remote
-

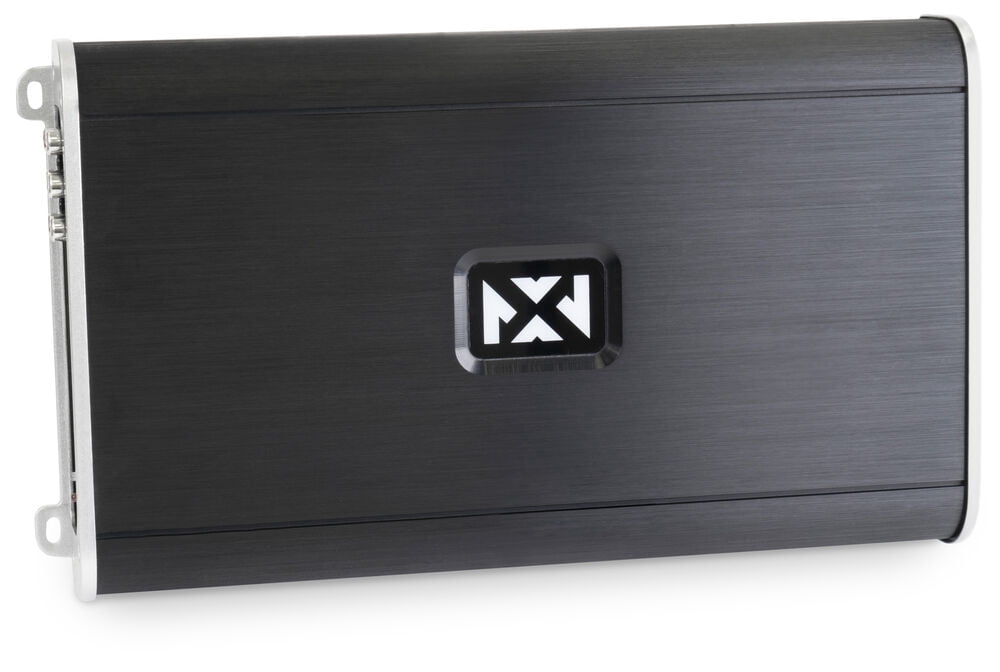

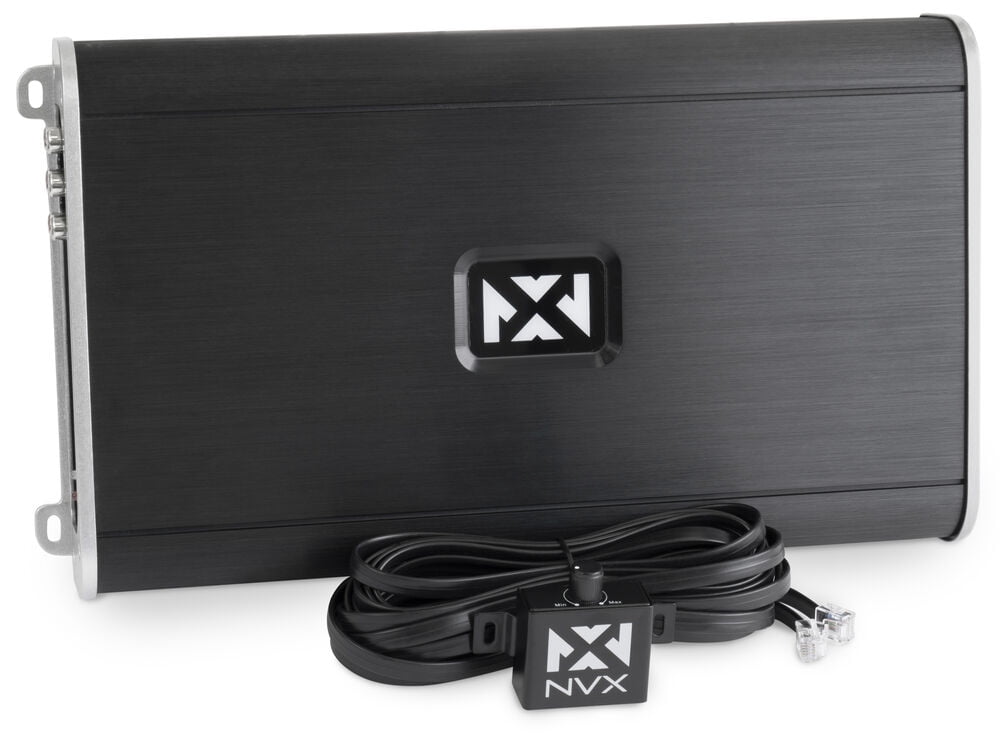

NVX VAD11005
1100W Full Range Class D 5-Channel Car/Marine/Powersports Amplifier with Bass Remote
Quantity: 1- Marine Certified Full Range Class D 5-Channel Amplifier with Bass Remote
- CEA-2006 Compliant
- Peak Power Rating: 2200 Watt
- RMS Power Rating:
-
- 4 ohms: 80 watts x 4 chan. + 350 x 1 chan.
- 2 ohms: 125 watts x 4 chan. + 600 x 1 chan.
- Bridged, 4 ohms: 250 watts x 2 chan
- Conformal Coated Marine grade circuit board
- LED power (blue) and protect (red) indicators
- 5/4/2 channel operation
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy heat-sink
- Platinum-plated RCA level inputs
- Platinum-plated screw terminals
- 2, 4 and 5 channel operation
- Variable high-pass filter (40-500 Hz, 12 dB/octave)
- Variable low-pass filter (50-250 Hz, 12 dB/octave)
- Variable subsonic filter (10-20 Hz, 12 dB/octave)
- Variable Bass Boost (0 to +18 dB bass boost at 45 Hz)
- Input Sensitivity: 200mV-6V
- Frequency response: 20-20,000 Hz
- Fuse Rating: 40A x 3
- Power Wire Gauge: 4 AWG
- Speaker Wire Gauge: 8 AWG
- Dimensions: 12"L x 7.2"W x 2.0"H
-

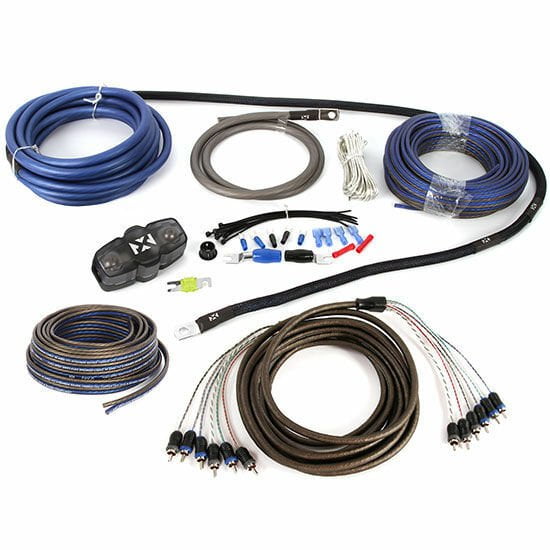

NVX XKIT46
Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 5/6-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1- 4 Gauge 5/6-Channel X-Series Complete Amplifier Installation Kit
- Designed for car audio systems up to 1500 watts RMS
- Made from 100% (OFC) Oxygen-Free Copper for pure uninterrupted power and current transfer
- Tinned conductors for corrosion resistance
- Pre-installed black nylon mesh covering protects power wire from being damaged
- Solid Brass and Satin Chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
- Pre-terminated seamless power and ground ring terminals provide reliable performance
- Full Spec cables meet or exceed the American Wire Gauge standards
- Strand Count: 1862
- CEA-2015 and BC5W2 Compliant
| Brand | NVX |
|---|---|
| Rms power rating | 1100 W |
| Channels | 5 |
| Impedance | 4 ohm |
| Peak audio power handling | 2200 W |
| Input/output type | RCA |
| Rec. use | Car Audio |
| Size | One Size |
| Color | Multi-color |
| Audio output | 2200W |
| Items included | Bass Remote |
| Inputs/Outputs | Platinum-plated RCA level inputs Platinum-plated screw terminals |
| Input/output direction | Input |
| Model | VAD11005, XKIT46 |
| Compatibility | Car/Marine/Powersports |
| Vehicle type | Car |
| Has written warranty | No |
| Assembled product weight | 17.58 lb |
| Amps | 4 Amps |
